Network cables are the physical backbone of wired communication systems. They determine data speed, signal quality, reliability, and security in LANs, data centers, offices, and homes. Selecting the right cable type, conductor material, and installation standard directly affects network performance and longevity.
This Knowledge Base article provides a technical, practical, and standards-oriented overview of network cables, including technologies, features, color coding, copper vs aluminium conductors, major manufacturers, use cases, and best practices.
Network cables transmit data as electrical signals (copper) or light pulses (fiber) between network devices such as switches, routers, servers, and endpoints.
Key technical parameters:
Category (Cat) – Defines bandwidth and frequency
Conductor material – Copper or aluminium
Shielding – Protection against interference
Twisting rate – Reduces crosstalk
Maximum length – Signal integrity limit

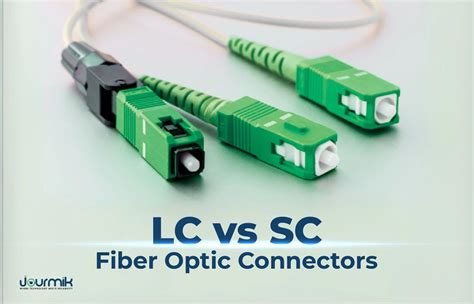

Connector type – RJ45, LC, SC, etc.
| Category | Max Speed | Bandwidth | Max Length | Typical Use |
|---|---|---|---|---|
| Cat5e | 1 Gbps | 100 MHz | 100 m | Home, SMB |
| Cat6 | 1 Gbps (10 Gbps ≤55 m) | 250 MHz | 100 m | Office LAN |
| Cat6A | 10 Gbps | 500 MHz | 100 m | Enterprise |
| Cat7 | 10 Gbps | 600 MHz | 100 m | Data centers |
| Cat8 | 25–40 Gbps | 2000 MHz | 30 m | Server racks |
| Type | Core Size | Distance | Speed | Use |
|---|---|---|---|---|
| Single-mode (SMF) | ~9 µm | 10–100+ km | 10–400 Gbps | ISP, backbone |
| Multi-mode (MMF) | 50/62.5 µm | ≤550 m | Up to 100 Gbps | Data centers |
Used in legacy networks and cable broadband
High noise immunity
Limited modern LAN usage
| Type | Description | Use Case |
|---|---|---|
| UTP | Unshielded | Standard office LAN |
| FTP | Foil shield | EMI-prone areas |
| STP | Braided shield | Industrial |
| S/FTP | Individual pair + overall shield | Data centers |
Note: Cable color does not affect performance. It is for identification and management.
| Color | Common Usage |
|---|---|
| Blue | Standard data connections |
| Yellow | Backbone / uplinks |
| Red | Critical or management links |
| Green | Crossover or special use |
| White | Voice / IP phones |
| Black | Outdoor / UV-resistant |
| Orange | ISP demarcation |
| Purple | Security / camera networks |
Advantages
Low resistance
Full PoE support
Meets ANSI/TIA standards
Longer life and reliability
Performance Impact
Full rated speed (1G/10G)
Stable latency
Better heat handling
Advantages
Cheaper
Lightweight
Disadvantages
Higher resistance
Voltage drop in PoE
Not standards-compliant
Shorter lifespan
Performance Impact
Reduced speed over distance
Packet loss at high load
PoE failures and overheating
| Aspect | Copper | CCA |
|---|---|---|
| Speed stability | Excellent | Poor over distance |
| PoE support | Yes | Risky |
| Heat tolerance | High | Low |
| Compliance | Standards-compliant | Not compliant |
| Long-term cost | Lower | Higher (failures) |
Recommendation:
✔ Use pure copper for all professional, PoE, and high-speed networks.
CommScope
Panduit
Belden
D-Link
Legrand
Siemon
Cat5e/Cat6 copper
Short runs
Cost-effective installations
Cat6A with structured cabling
Color-coded patching
PoE devices (APs, IP phones)
Cat6A/Cat8 (short runs)
Fiber backbone
Shielded cables
Shielded copper
Black UV-resistant jackets
Armored fiber
1. Identify required speed (1G / 10G / 25G) 2. Measure maximum cable length 3. Determine PoE requirement 4. Choose copper or fiber 5. Select shielding based on EMI 6. Enforce color coding standard 7. Verify pure copper certification
Fix
Replace Cat5 with Cat6/Cat6A
Eliminate CCA cables
Fix
Use solid copper cable
Reduce cable length
Fix
Check termination quality
Avoid sharp bends
Fix
Use shielded cables
Improve grounding
Secure cable trays and racks
Avoid exposed patch cords
Color-code sensitive networks
Use locked cabinets
Monitor for unauthorized taps
Always use pure copper cables
Follow ANSI/TIA-568 standards
Maintain bend radius limits
Label both ends of every cable
Keep power and data cables separate
Document color coding policy
Test links after installation
Network cables are critical infrastructure components that directly influence speed, reliability, power delivery, and security. Understanding cable categories, shielding, color coding, and conductor materials—especially the impact of copper vs aluminium (CCA)—enables informed decisions and prevents costly failures. For professional networks, pure copper cabling with proper standards and documentation is essential.
