AutoCAD vs Inventor vs Fusion: Complete Technical Comparison for Mechanical Design & Manufacturing

Autodesk provides multiple CAD solutions that often create confusion among engineers, IT administrators, and business owners—particularly AutoCAD, Inventor, and Fusion. While these tools share file compatibility and ecosystem integration, they are separate products, each designed for distinct workflows.

This Knowledge Base article explains what AutoCAD, Inventor, and Fusion are, how they differ technically, where each is best used, and how to choose the correct solution for mechanical design, drafting, and manufacturing environments.

---

Product Overview

AutoCAD

AutoCAD is Autodesk’s flagship CAD application focused on 2D drafting with optional basic 3D modeling.

Key Features

• Industry-standard DWG/DXF file format

• Precise 2D drafting and annotation tools

• Layers, blocks, Xrefs

• Basic 3D solids and surfaces

• AutoLISP and scripting support

• Mechanical, Electrical, and Architecture toolsets (full version)

Variants

• AutoCAD (Full): 2D + limited 3D

• AutoCAD LT: 2D only (no LISP, no 3D)

---

Autodesk Inventor

Inventor is a professional mechanical CAD (MCAD) solution built for parametric 3D modeling and assemblies.

Key Features

• Parametric part modeling

• Multi-level assemblies

• Bill of Materials (BOM)

• Exploded views & animations

• Sheet metal, frame generator, tube & pipe

• Manufacturing-ready drawings

• Strong AutoCAD DWG interoperability

---

Autodesk Fusion

Fusion (formerly Fusion 360) is a cloud-enabled, integrated CAD/CAM/CAE platform.

Key Features

• Parametric & direct modeling

• Built-in CAM (CNC milling, turning)

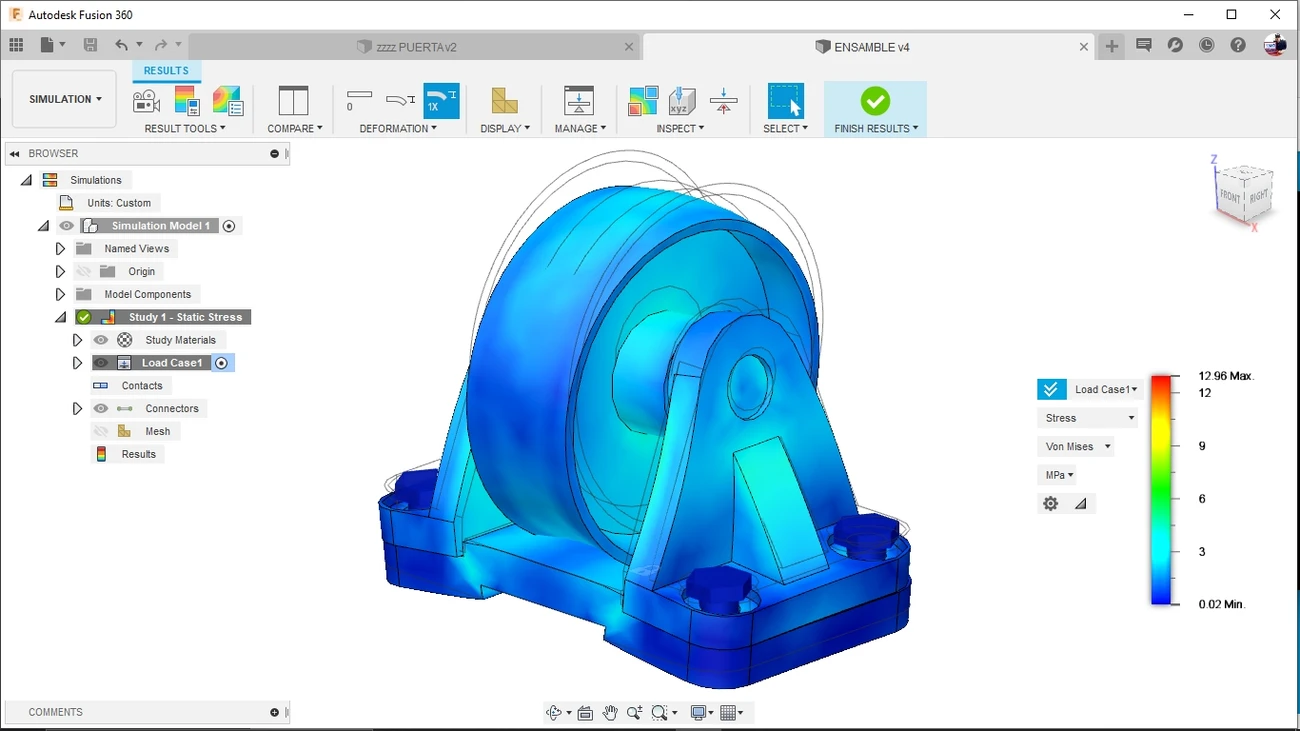

• Simulation (stress, thermal, motion)

• Cloud collaboration & version control

• Electronics & PCB design

• Rendering and animation

---

Technical Explanation (Core Differences)

Area	AutoCAD	Inventor	Fusion
Design Type	2D-centric	3D mechanical	3D product lifecycle
Parametric Modeling	❌	✅	✅
Assemblies	❌	✅ Advanced	✅ Moderate
CAM (CNC)	❌	❌ (addon)	✅ Native
Simulation	❌	❌ (addon)	✅
Cloud Collaboration	❌	❌	✅
Learning Curve	Low	High	Medium

---

Use Cases

AutoCAD

• Mechanical 2D drawings

• Shop drawings & layouts

• Electrical schematics

• Civil & architectural plans

• AMC-based drafting services

Inventor

• Industrial machinery design

• Mechanical assemblies

• Sheet metal fabrication

• Tooling & fixtures

• OEM manufacturing documentation

Fusion

• Product prototyping

• CNC machining

• 3D printing workflows

• Startups & small manufacturing units

• Design-to-production pipelines

---

Step-by-Step: Typical Implementation Scenarios

Scenario 1: 2D Mechanical Drawing (AutoCAD)

1. Create DWG file

2. Set units and layers

3. Draft geometry

4. Add dimensions & tolerances

5. Export PDF or DWG

---

Scenario 2: Mechanical Assembly (Inventor)

1. Create parametric parts (.ipt)

2. Assemble components (.iam)

3. Apply constraints

4. Generate BOM

5. Produce drawings (.idw/.dwg)

---

Scenario 3: CNC Manufacturing (Fusion)

1. Import or create 3D model

2. Switch to Manufacturing workspace

3. Define toolpaths

4. Simulate machining

5. Export G-code

---

Commands / Examples

AutoCAD (Basic Commands)

LINE      – Draw straight lines
OFFSET    – Create parallel lines
DIM       – Add dimensions
BLOCK     – Create reusable blocks
XREF      – Attach external drawings

Inventor (Conceptual Workflow)

Sketch → Constrain → Extrude → Assemble → Detail Drawing

Fusion (CAM Workflow)

Design → Manufacture → Setup → Toolpath → Simulate → Post Process

---

Common Issues & Fixes

AutoCAD

Inventor

Fusion

---

Security Considerations

• AutoCAD & Inventor

  • Local file storage → ensure backup

  • Use NTFS permissions

  • Restrict LISP macros from unknown sources

• Fusion

  • Cloud-stored designs

  • Enable MFA on Autodesk account

  • Control project access permissions

---

Best Practices

• Use AutoCAD LT only for pure 2D drafting

• Use Inventor for heavy mechanical assemblies

• Use Fusion for CNC and rapid prototyping

• Standardize templates & layers

• Maintain version control and backups

• Train users per tool (do not mix workflows blindly)

---

Conclusion

AutoCAD, Inventor, and Fusion are not different versions of the same software. They are purpose-built tools for different stages of design and manufacturing.

• AutoCAD → Drafting standard

• Inventor → Mechanical engineering powerhouse

• Fusion → Modern, integrated design-to-manufacture solution

Choosing the right tool improves accuracy, productivity, and long-term scalability.
